Pull request integration

The CI/CD workflow already re-validates the justification on every change and turns the check red when a claim drifts. But that red mark lives in the Actions tab, off to the side of where the work actually happens. On a team, a change arrives as a pull request, and the pull request is where it is discussed, reviewed, and approved.

So the point of wiring jPipe into pull requests is this: a failing justification becomes part of the conversation. Instead of a bare red check someone has to go hunting for, the coloured diagram is posted right into the PR, so the broken claim sits in the discussion, next to the change that caused it, for every reviewer to see.

This continues the CI/CD tutorial: the same model and step library, and the same stale-changelog drift, now delivered through a pull request.

The workflow

Trigger on pull requests, let the action comment, and switch embed_image on. There is no mock step this time: the pull request carries the real changelog, stale or not.

name: Justify the release

on:
  pull_request:
    branches: [main]

permissions:
  contents: write        # push the rendered diagram to a branch
  pull-requests: write   # comment on the pull request

jobs:
  justify:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout repository
        uses: actions/checkout@v7

      - name: Run the jPipe justification
        uses: jpipe-mcscert/jpipe-runner@v3.5.3
        with:
          jd_file: "run/release.jd.json"
          library: |
            run/release_lib.py
          embed_image: true
          github-token: ${{ secrets.GITHUB_TOKEN }}

Three things change from the CI/CD job:

• on: pull_request runs the justification on every pull request against main, and again on each new commit pushed to the branch.
• embed_image: true tells the action to publish the coloured diagram as a PR comment instead of only uploading it as an artifact.
• the permissions block lets the built-in github-token do that: contents: write to commit the rendered image to a branch (jpipe-runner-diagrams by default) and pull-requests: write to leave the comment.

The argument joins the review

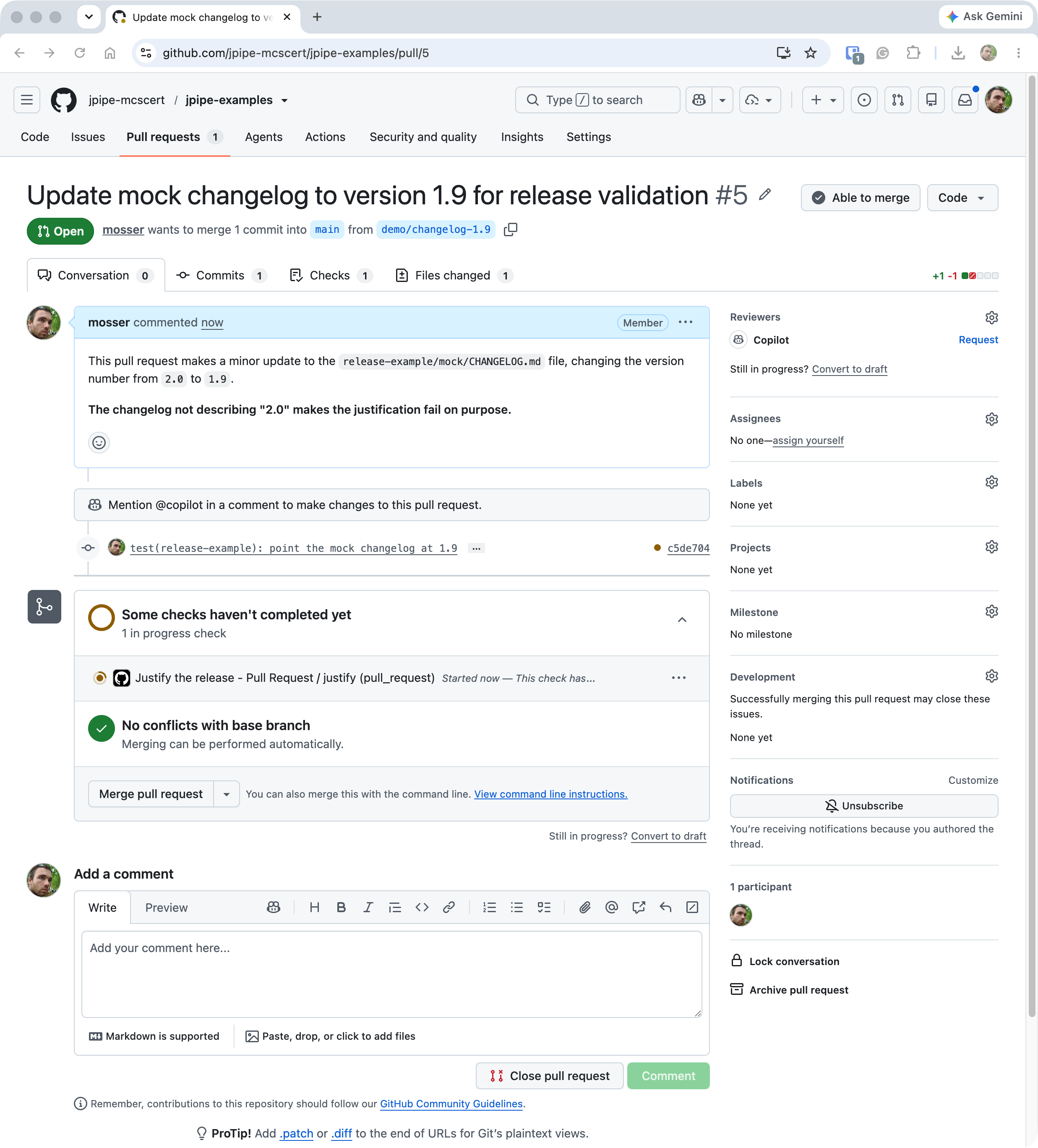

Open a pull request that ships 2.0 but leaves the changelog on the previous version, the same drift from the CI/CD tutorial, now on a branch under review. GitHub starts the check right away:

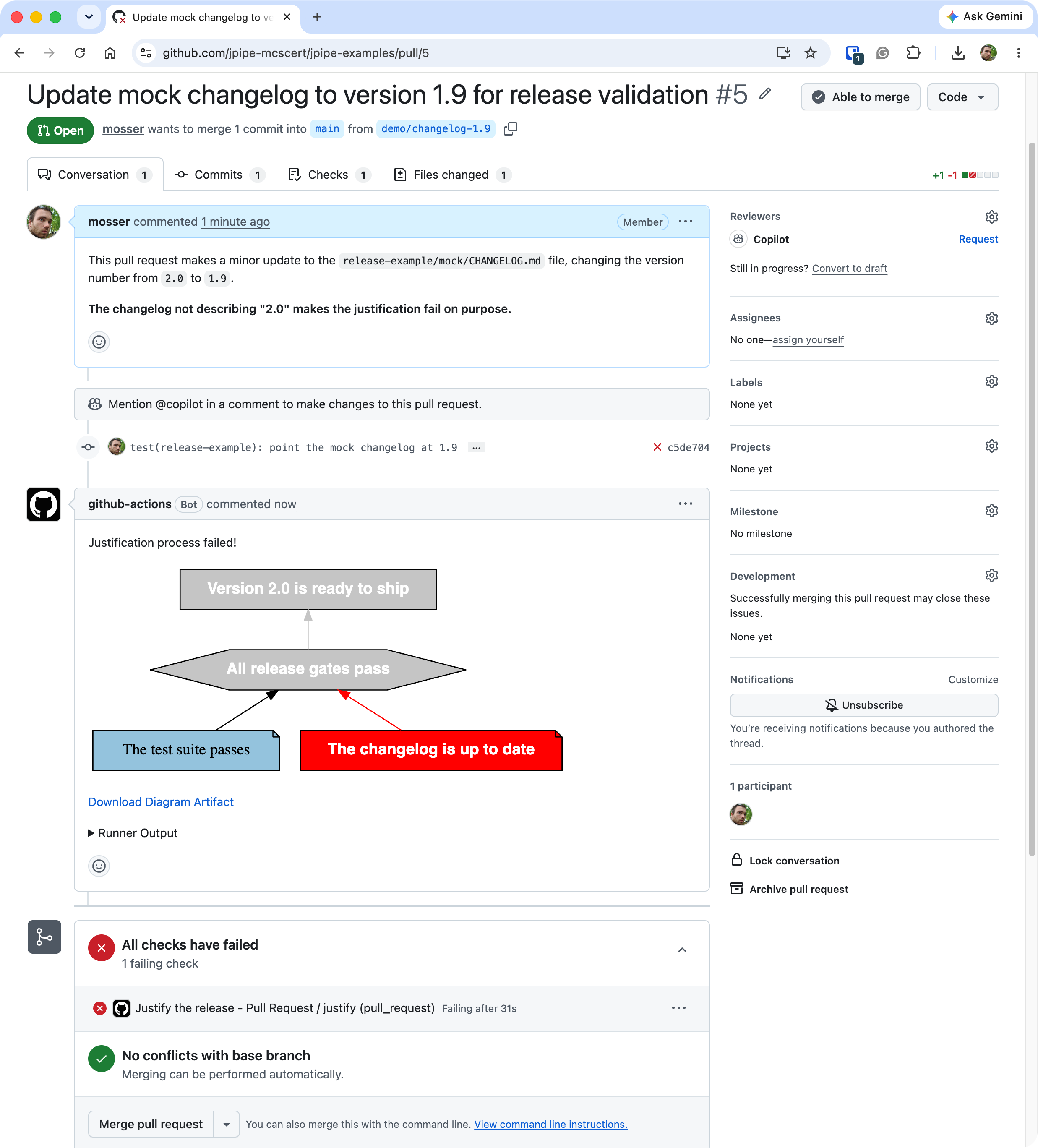

When it finishes, the justification has failed, and the jPipe action posts the result as a comment from the github-actions bot: the coloured diagram, right there in the conversation, with “The changelog is up to date” in red and the strategy and conclusion above it greyed out. The pull request’s check is red, and “All checks have failed” holds the merge box shut:

The broken claim is part of the discussion now, not a red mark buried in the Actions tab. A reviewer sees exactly which fact failed, without leaving the page, and the comment even links the diagram artifact and the full runner output.

Fixing it in the open

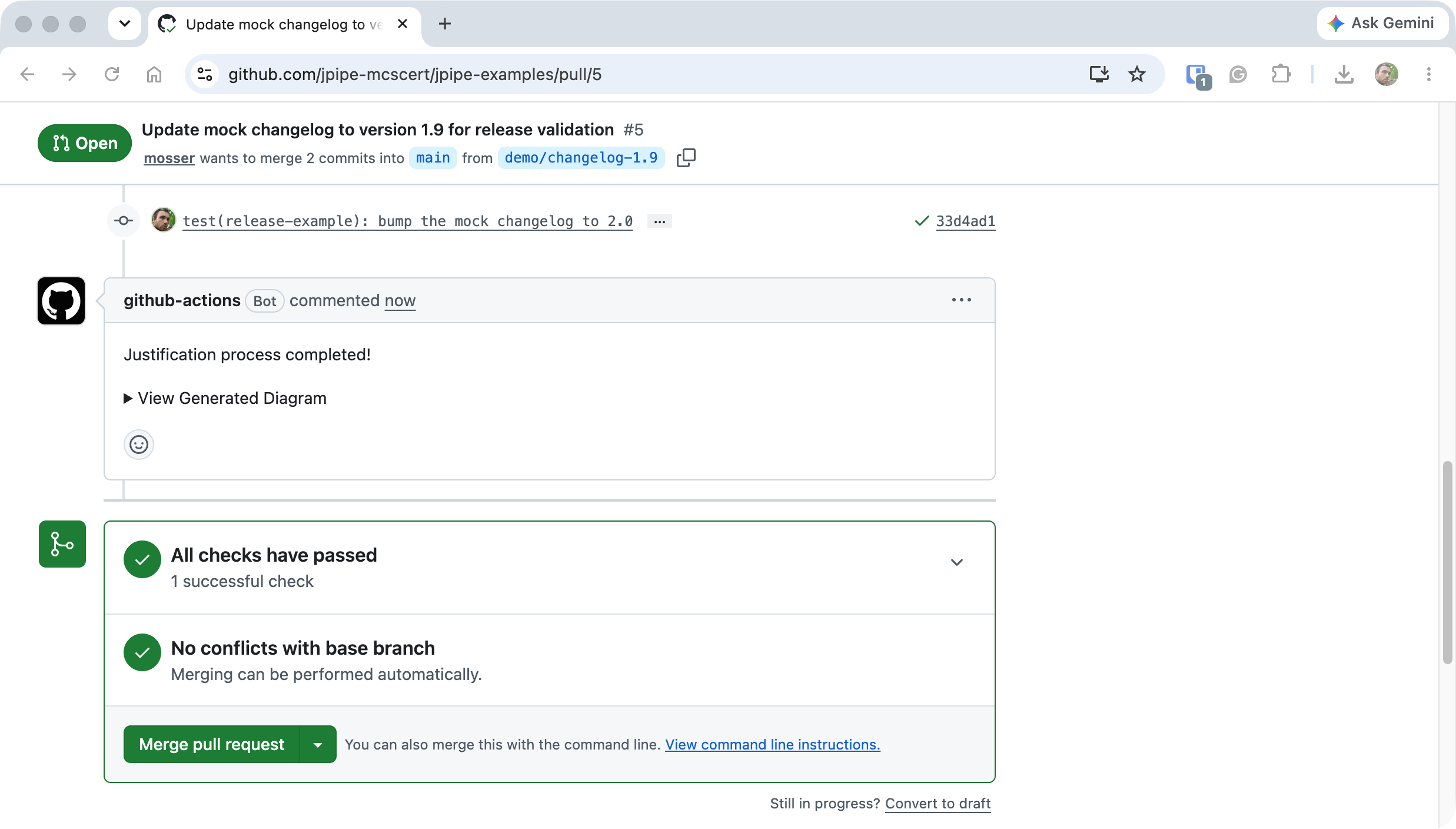

Push a commit to the branch that bumps the changelog to name 2.0. The action re-runs on the new commit and comments again, this time “Justification process completed!”, the check turns green, and the merge box clears:

Because it all played out on the pull request, the record is complete: the conversation shows the argument breaking, the commit that answered it, and the justification passing, all before anything merged.

Block the merge on a broken argument

The check’s status follows the justification, so make it required in your repository’s branch protection rules (Settings → Branches). GitHub then refuses to merge a pull request whose argument is red: a change cannot land until its justification holds again.

Where to next?

• Make the argument itself more reusable with templates and the composition operators (assemble, refine).

Full action reference: jpipe-runner/docs/ACTION.md.
